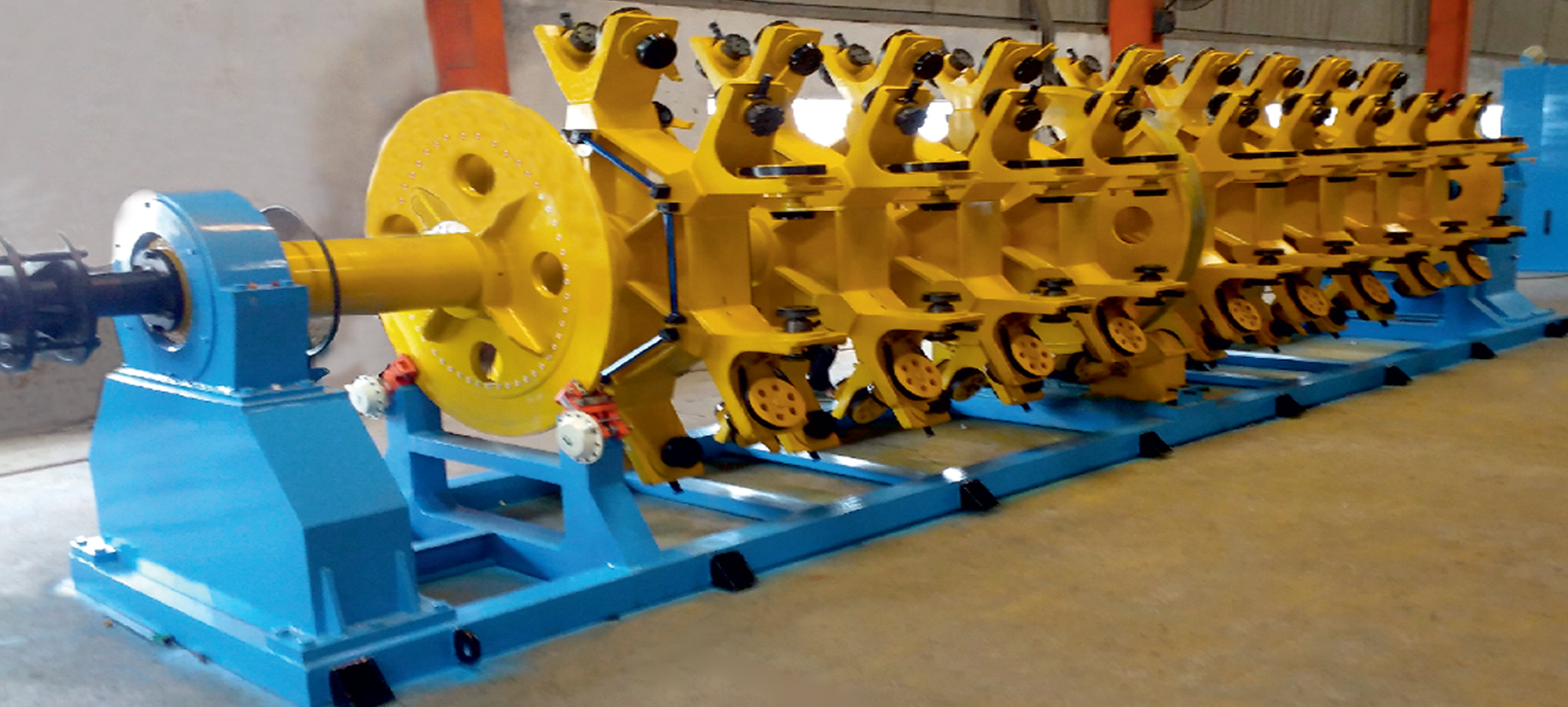

Armouring Machine
The machine is used for CU, Al & steel wires or
flat armouring and Cu- screening of the cables.
Multiwire screening of medium and high voltage conductors
Main features
- Self supporting rigid rotor design
- High efficiency and speed
- Bobbins mounted on pintles
- Line drive by A.C. or D.C. motors with electronic or mechanical
synchronization between line components.
- Different breaking device for bobbins'
- Centralized lubricating system for bearing
- Two performance level : normal & high speed
- Tandem type Stranding Cum Armouring Machines
- Machines with or without back twist
- MMI /PLC Equipped,optional
- Taping Heads
- Single or Multi cage Assembly
- Easy Lay Setting
 |
| Model |
Wire Dia |
Rotor Speed(Rpm) (Max) |
Bobbin Size |
Driven Motors ( Kw) |
| SMEPL/ARM/48 |
1-3 mm |
100 |
450/500/560 |
50 |
| SMEPL/ARM/54 |
1-3 mm |
100 |
450/500/560 |
60 |
| SMEPL/ARM/72 |
1-3 mm |
80 |
450/500/560 |
100 |
| SMEPL/ARM/96 |
1-3 mm |
80 |
450/500/560 |
125 |
|
|

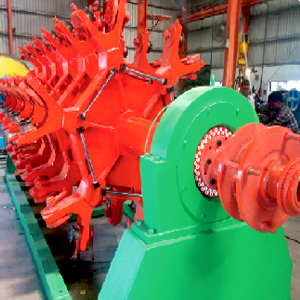

Armouring Cum Laying Machine
» For Armouring of Inner sheathed cable with
steel wire and strips .
» Stranding of multiwire of Aluminium and Copper upto 61 wires in four
processes.
» Assembly of 3.3 ½ and 4 PVC/XLPE Insulated Aluminium / Copper
conductor sector shaped cores and assembly of 4 circular cores .
Main features
- Rigid Cradle Type
- Self supporting rigid rotor design
- High efficiency and speed
- Reels mounted on pintles
- Line drive by A.C. or D.C. motors with electronic or mechanical
synchronization between line components.
- Different breaking device for reels
- Centralized lubricating system for bearing
- Two performance level : normal & high speed
- Multi Purpose Machine
- MMI/PLC Equipped
|
| Model |
Rotor Speed(Rpm) (Max) |
Driven Motors ( Kw) |
| SMEPL/ACL/48 |
100/20 |
50 |
| SMEPL/ACL/54 |
80/20 |
60 |
| SMEPL/ACL/72 |
60/20 |
100 |
|
|
