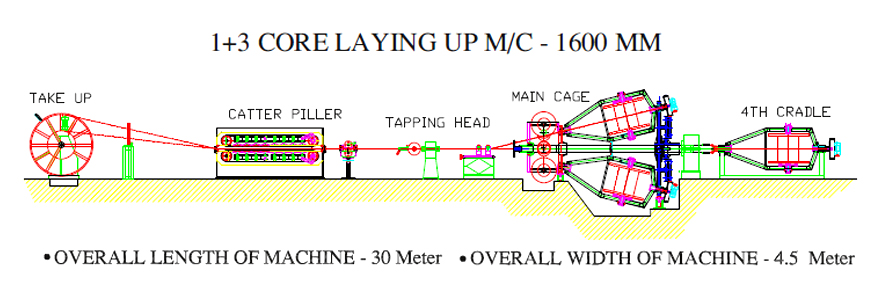

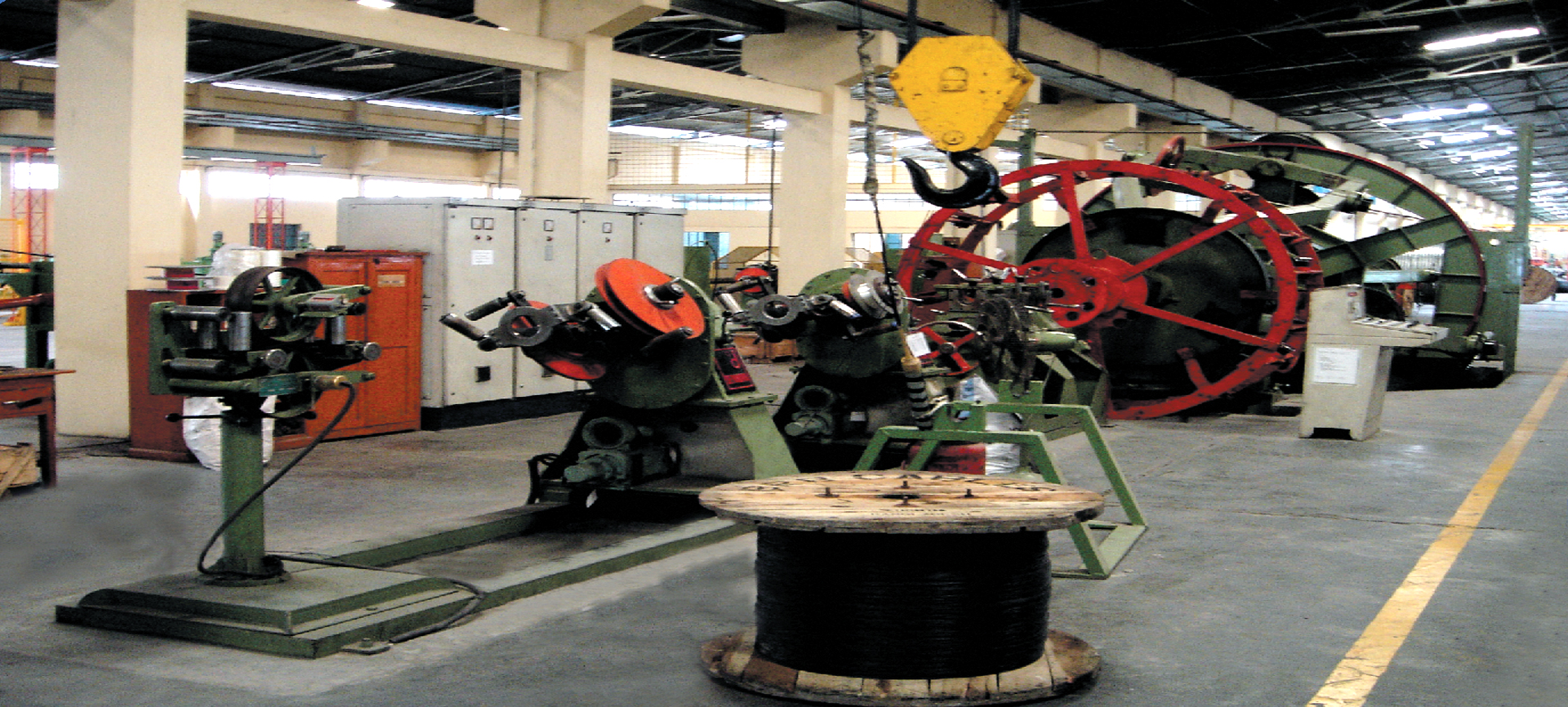

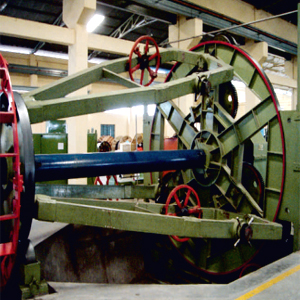

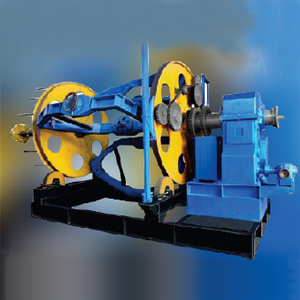

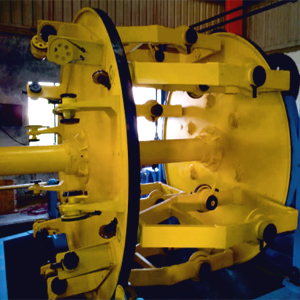

Core Laying Up Machine
The machine is used for cabling/laying the multi core ( 2, 3, 31/2 , 4, 5 ), of
PVC cables, XLPE cables in round or sector shaped for LT and HT Cables. The machine is also used for Laying of Ariel Bunched Cables
We create value with our vast sales force and
key relationship in the industry
Main features


  • Machine may strand the round cables with back twist and sector cables without back twist
  • Line drive by A.C. / D.C motors with electronic or mechanical synchronization between line components.
  • Facilitated with motorized sector correction
  • With or without back twist arrangement ( Sun and Planetary Arrangement)
  • Main shaft is supported with roller bearings for easy maintenance.
  • Special Gear Boxes for Main Drive
  • Heavy Duty Pneumatic Drum Brake for Main Cage
  • Filler Bobbin Provision for 6 to 9 Bobbins.
  • HMI and PLC Equipped (optional)
  • Easy Lay Setting
  • Range of Takeup and Payoffs available
  • Heavy Duty Haul Off Belt Caterpillar Unit
  • Inline Tangential/Concentric Taping Heads


Model Rotor Speed (Rpm) (Max) Driven Motors (KW)
SMEPL/CL/1+3/1250 60 60
SMEPL/CL/1+3/1600 30 75
SMEPL/CL/1+3/1800 20 90
SMEPL/CL/1+4/1250 40 40
Note :
Since the Machines undergoes continues changes we reserve the right to modify the details These Machine are Manufactured in Various Bobbin Size as Per DIN Stand.
