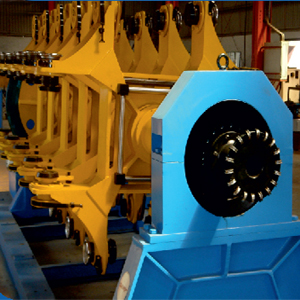

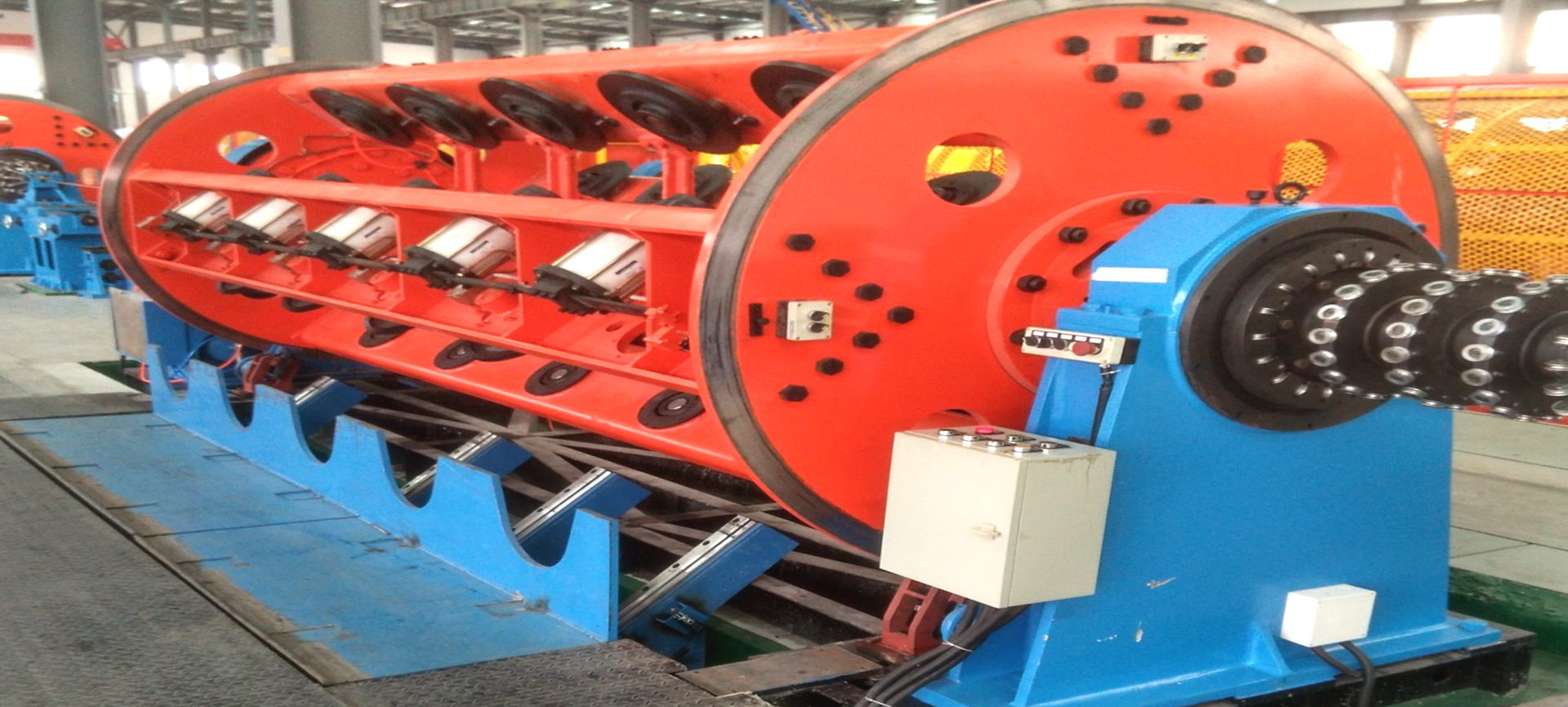

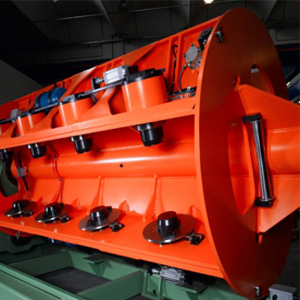

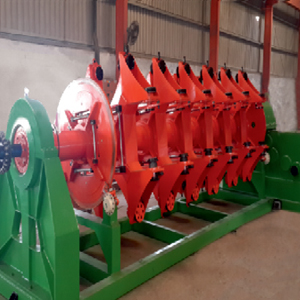

Rigid Stranding Lines
The machine is used for stranding Copper, Steel and Aluminum. Stranding unilay and reverse concentric, round, compressed, compacted or sector shaped (straight or prespiralled ) conductors to be used for Cable Manufacturing or for Over Head Conductors
Rigid Stranding Lines are ideal machine for making conductors of larger sizes for LV/MV/HV Power Cables and Over Head Conductors ( AAC/AAAC/ACSR). The Machine is also provided with Automatic Batch Loading System with Auto Pintle Locking and Auto Tension Control
We create value with our vast sales force and
key relationship in the industry
Product Range


  • Self supporting rigid rotor design for 1+6+12+18+24+30+36 Bobbins(Assorted Configurations )
  • Various Bobbin sizes as per DIN standards
  • High efficiency and speed
  • Bobbins mounted on heavy duty hardened pintles
  • Batch Loading ( Side Bottom Loading) for each of the Cages with Automatic Pintle Locking
  • Automatic Tension Control on the Wires
  • Line drive by A.C. or D.C. motors with electronic or mechanical synchronization between line components.
  • Multi Speed Special Gear Boxes for each cage
  • Line Shaft Transmission Or Independent Drive System with Infinite Lay Setting
  • Heavy Duty Grooved, Dual Capstans for different configuration
  • Disk type Pneumatic brake for Each Cage.
  • Instant Stop on Wire Breakage
  • HMI /PLC Equipped
  • Easy Lay Setting
  • Range of Takeups and Payoffs available
  • Pre Former and Post Former Heads
  • Pre Spiralling


Model Wire Dia Max Rotor Speed(Rpm) Bobbin Size Driven Motors (Kw)
SMEPL/RS/(1+12+18) 1.3mm-4.77 mm 230/210/190 500/560/630 60
SMEPL/RS/(1+6+12+18) 1.3mm-4.77 mm 250/230/210 500/560/630 60
SMEPL/RS/(1+12+18+24) 1.3mm-4.77 mm 230/210/190 500/560/630 75

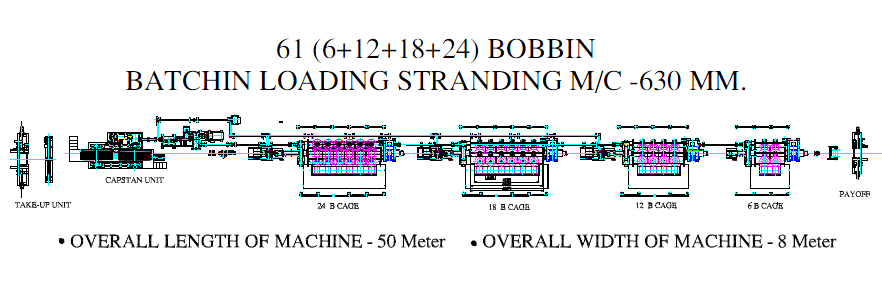

SMEPL/RS/(1+6+12+18+24) 1.3mm-4.77 mm 250/230/210 500/560/630 100
SMEPL/RS/(1+6+12+18+24+30) 1.3mm-4.77 mm 250/230/210 500/560/630 150


Note :
Since the Machines undergoes continues changes we reserve the right to modify the details These Machine are Manufactured in Various Bobbin Size as Per DIN Stand.
