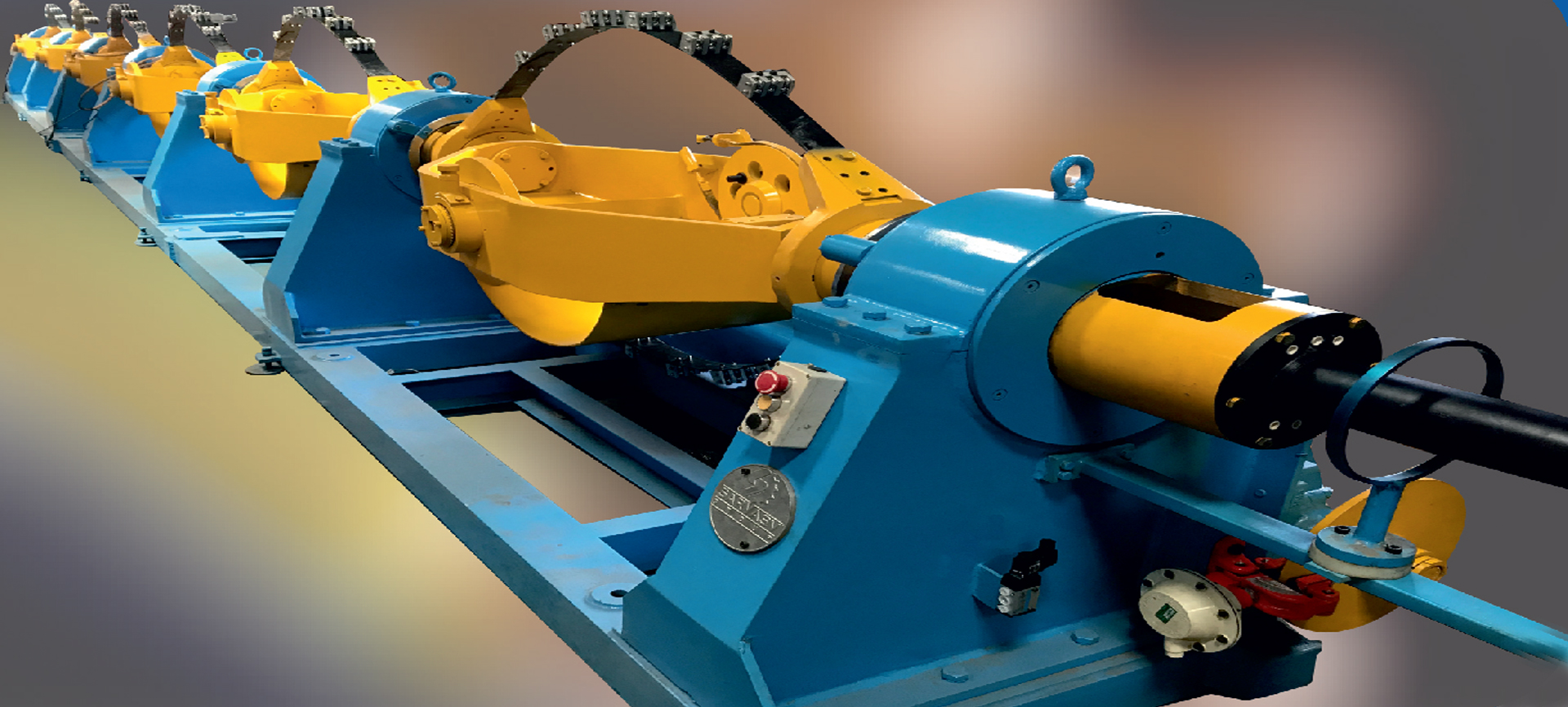

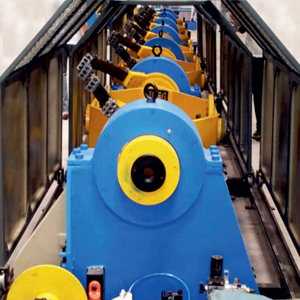

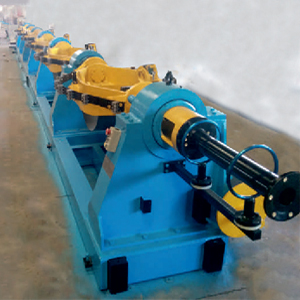

Skip Stranding Machines
SARVASV offers a range of High Speed Skip / Bow Stranding Machines for
Copper and Aluminum Wire Stranding and Insulated Core Twisting for Multi Core Cables. This Strander is used for making round and sector shaped strand for Cables ( 7 Strand or Flexible) and Over Head Conductors (AAC/AAAC/ACSR).
We create value with our vast sales force and
key relationship in the industry
Main features


  • Heavy Duty frame for high Speed Stability
  • Dynamically Balanced Rotors with Double Bearing Support
  • Timing Belt Drive for each Rotor
  • Specially Designed Steel Bows
  • Hardened Die Steel Rollers for Wire passing
  • High efficiency and speed
  • Line drive by A.C. motors with electronic or mechanical synchronization between line components
  • Centralized lubricating system

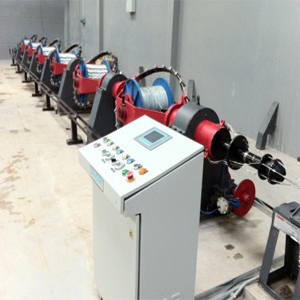

  • HMI /PLC Equipped
  • Easy Lay Setting
  • Ergonomically designed Operator Control Station
  • Range of Takeups and Payoffs available
  • No Lay Variation during Power Failure

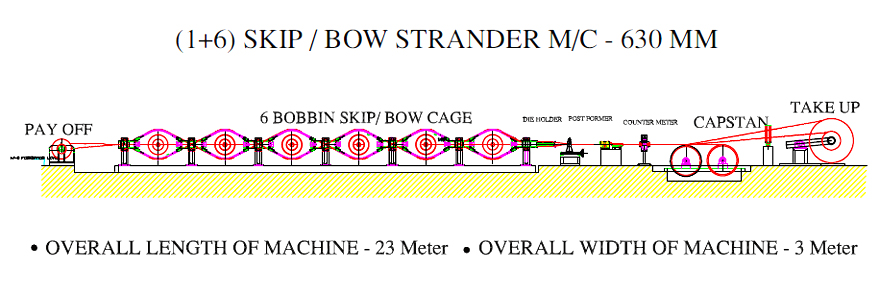

Model Wire/Core Dia Rotor Speed (Rpm) Main Motor (Kw)
SMEPL/SKP/7/630 1.5-5 mm 1000 40
SMEPL/SKP/7/560 1.5-5mm 1000 40


Note :
Since the Machines undergoes continues changes we reserve the right to modify the details These Machine are Manufactured in Various Bobbin Size as Per DIN Stand.
